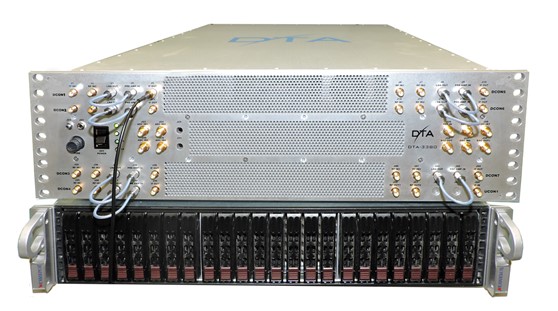

D-TA recently delivered an 8-Channel RFvision-Broadview system consisting of DTA-3380 RF transceiver and DTA-5000 RAID Server with 24 TB SSDs (expandable to 80 TB). The system was configured for 7 receive channels and 1 transmit channel. All receive channels are phase coherent. The frequency tuning range is 1 MHz to 8 GHz and IBW is 80 MHz. The operating BW is DDC selectable from 5 kHz to 80 MHz. The system uses high performance super heterodyne RF channels, 93 dB gain control, 16 bit data converters and 4×10 GbE optical fibers to move baseband I/Q data (at 4 GBytes/s rate) from all channels at full BW for record, playback and processing. The system also supports simultaneous receive and transmit functions for RF recording and RF playback. This implies that while all 7 channel data is being recorded, one channel can be selected for tunable RF transmit
